Tungsten Carbide Cutting Wheel | Tile Cutting Machine Blades | Durable Long-Lasting | For Manual Tile Cutters Support OEM
- Model
- 22*6*2
Item specifics
- material
- tungsten carbide
- Tol.(MM)
- +/-0.20
- Tol.(MM)
- +/-0.10
- Tol.(MM)
- +/-0.10
- Angle(a)
- 90° 100° 110° 120°
Review
Description
Tungsten Carbide Cutting Wheel Description
● Replacement tile cutting wheel
● Tungsten carbide scoring edge for long cutting life
● Replacement blade for manual tile cutter
● OEM is available
Tungsten Carbide Cutting Wheel Specification
Code | SIZE | O.D.(MM) | Tol.(MM) | O.d.(MM) | Tol.(MM) | H(MM) | Tol.(MM) | Angle(a) |
CZ-003 | Φ22X6X4.7 | 22 | +/-0.20 | 6 |
+/-0.10
|
4.7
|
+/-0.10
|
90°
100°
110°
120° |
CZ-004 | Φ22X6X2 | 22 | 6 | 2 | ||||
CZ-005 | Φ22X14X2 | 22 | 14 | 2 | ||||
CZ-006 | Φ22X10.5X2 | 22 | 10.5 | 2 | ||||
CZ-007 | Φ20X5X3 | 20 | 5 | 3 | ||||
CZ-008 | Φ18X6X3 | 18 | 6 | 3 | ||||
CZ-009 | Φ18X6X1.5 | 18 | 6 | 1.5 | ||||
CZ-010 | Φ16X6X4.9 | 16 | 6 | 4.5 | ||||
CZ-011 | Φ16X6X3 | 16 | 6 | 3 | ||||
CZ-012 | Φ16X6X2 | 16 | 6 | 2 | ||||
CZ-013 | Φ15X6X1.5 | 15 | 6 |
1.5
|
||||
CZ-014 | Φ13.5X6X1.0 | 13.5 | 6 |
1.5
|
||||
CZ-015 | Φ12X3X3 | 12 | 3 |
3
|
||||
CZ-016 | Φ9.9X2X2 | 9 | 2 | 2 |

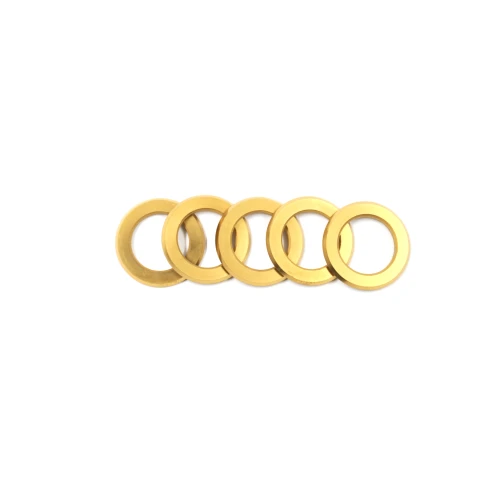

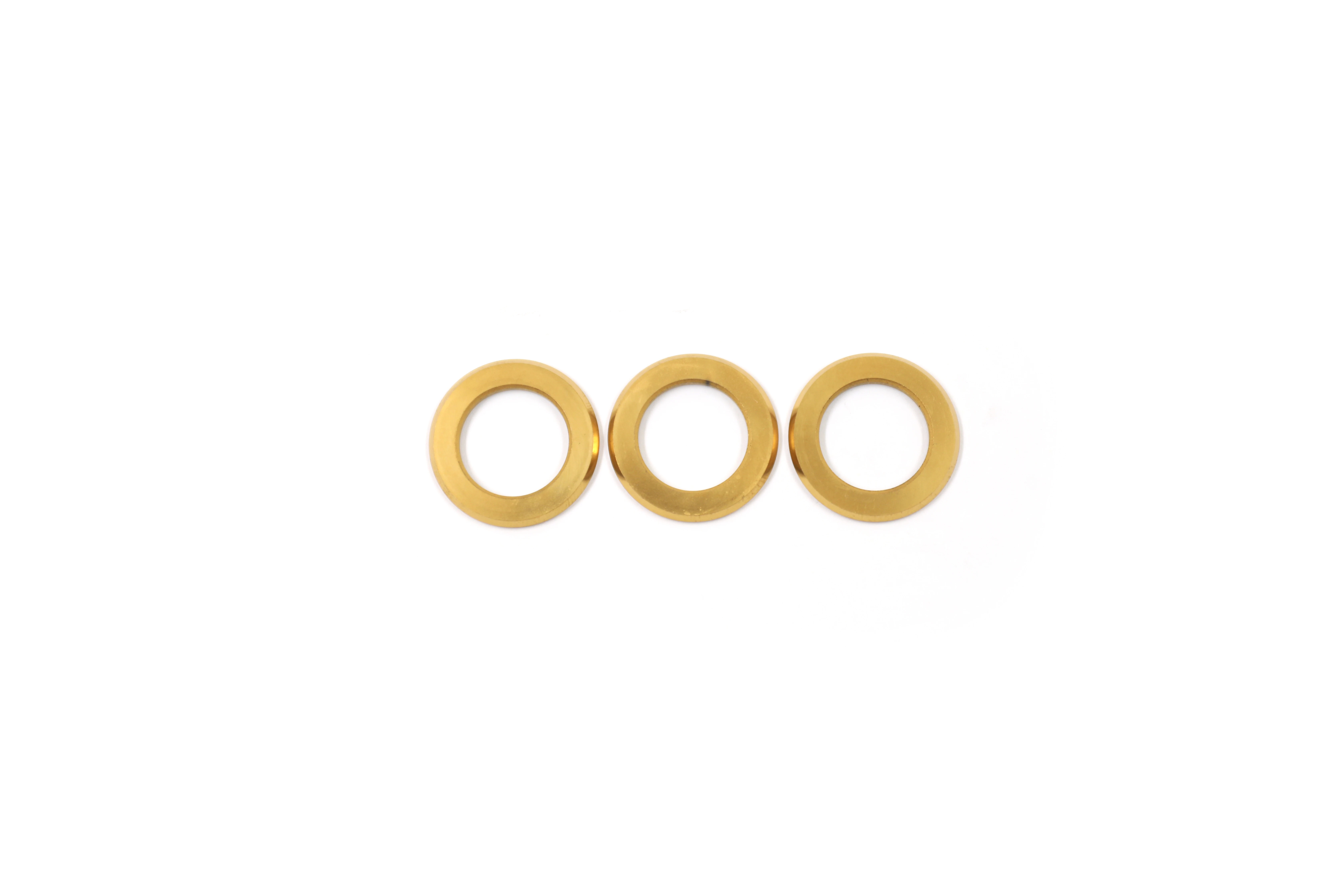

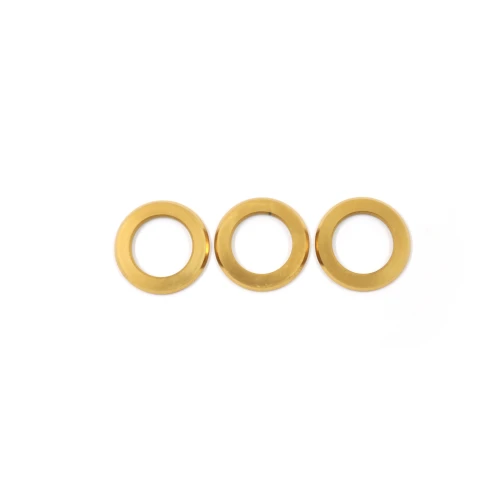

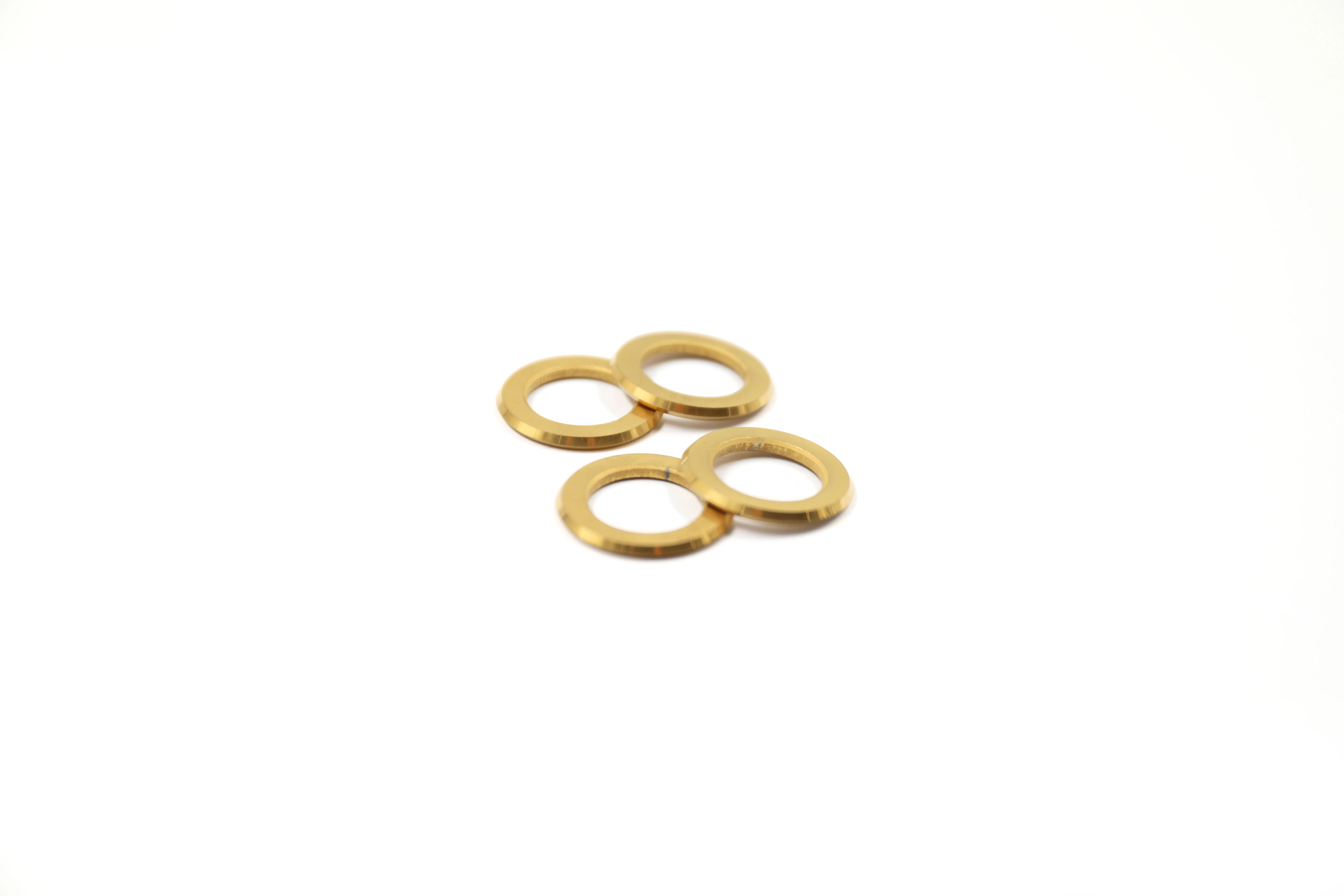

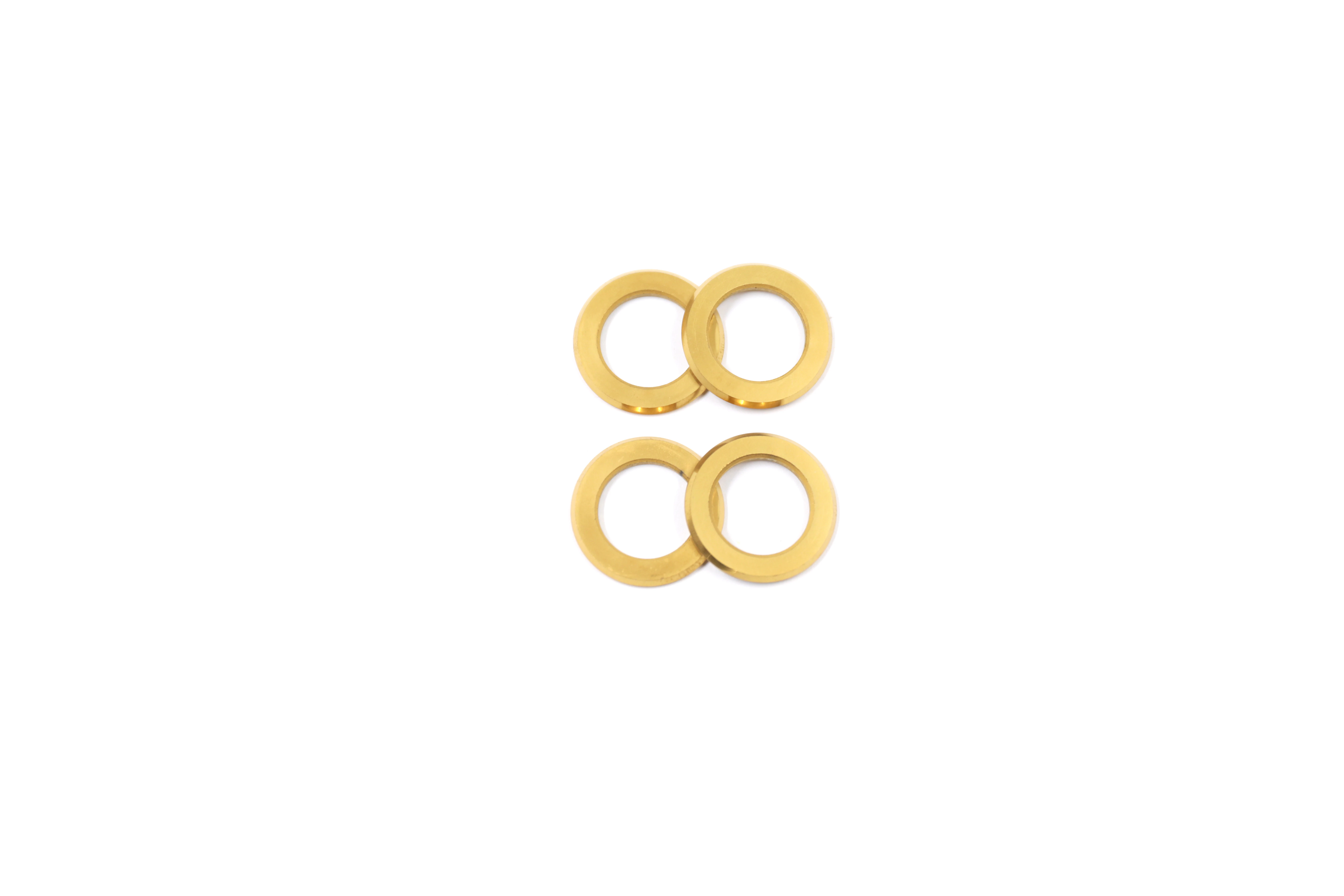

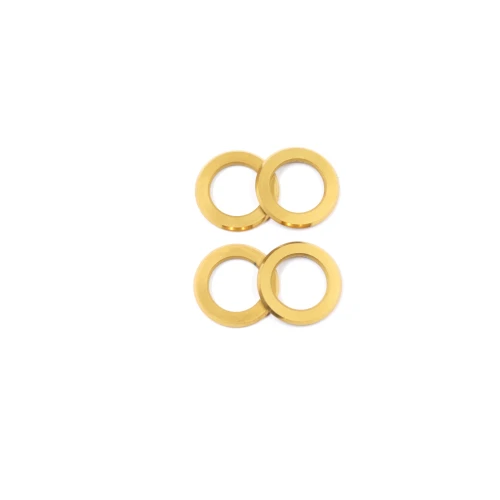

Tungsten Carbide Cutting Wheel Showcase
- If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
